Underground Marvels: Navigating Site Utilities Installation with Precision

The success of any construction project hinges on a strong foundation, both literally and figuratively. While the final structure captures the eye, the unseen world beneath our feet plays a critical role. Here at Carmichael Development, we specialize in this hidden realm – the intricate dance of sitework, particularly the precise installation of underground site utilities. These “underground marvels” are the lifeblood of a development and society, ensuring the flow of water, power, communication, and waste. This article delves into the complexities of navigating site utilities installation with precision, a cornerstone of Carmichael Development’s approach.

A Symphony Beneath the Surface: Planning and Coordination

Long before the first shovel breaks ground, meticulous planning lays the groundwork for successful underground utility installation. Our team collaborates closely with subcontractors, general contractors, and the client to map out a comprehensive plan. This “underground symphony” involves:

• Utility Mapping and Conflict Resolution: Existing utility lines are precisely located using advanced ground-penetrating radar (GPR) technology. This digital map identifies potential conflicts with the planned new infrastructure. Working with utility providers, we may need to reroute existing lines or adjust the design to avoid disruption.
• Material Selection and Engineering Specifications: The type of piping, conduit, and manhole materials used depends on the specific utility being installed. Factors like pressure rating, corrosion resistance, and expected lifespan are all considered. Engineers meticulously review and adhere to all relevant codes and specifications set by the municipality with jurisdiction over the installation to ensure the long-term integrity of the underground network.
• Sequencing and Scheduling: The installation of different utilities follows a carefully choreographed sequence. For example, water and sewer lines are typically installed first, followed by electrical conduits and telecommunication lines. This minimizes the risk of damage to already-installed infrastructure and ensures proper function for utilities affected by gravity. Scheduling plays a crucial role, ensuring timely delivery of materials and coordinating with utility companies for service disconnections and reconnections.

Excavation Expertise: Precision Meets Efficiency

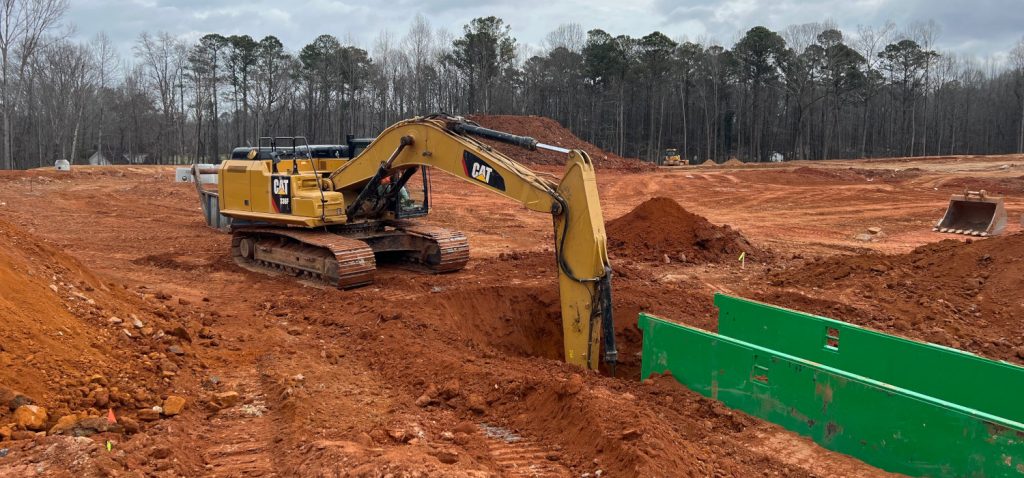

Once the plan is in place, the excavation phase commences. Carmichael Development utilizes a range of equipment specifically designed for safe and efficient trenching. Hydraulic excavators with various bucket sizes allow for precise removal of soil, minimizing disruption to the surrounding area. Trenchless technologies like horizontal directional drilling (HDD) may be employed for situations requiring minimal surface disturbance, such as crossing under existing roadways or environmentally sensitive areas.

Safety remains paramount throughout the excavation process, with strict adherence to regulations such as the 811 process and oversight from state authorities. Shoring techniques, such as steel sheet piling or trench boxes, are implemented to prevent cave-ins and protect workers. Underground utility locations are constantly refreshed to maintain the exact location of existing lines, ensuring they are not accidentally damaged.

The Art of Laying the Lines: Installation and Testing

With the trenches prepared, the utility crews at Carmichael Development take center stage. Utility lines are meticulously laid according to the plan, ensuring proper alignment, depth, and grade. Trained personnel handle each type of utility with expertise, following established best practices. For example, proper bedding material is used to support the pipes and prevent future movement. Joints are meticulously sealed to prevent leaks, thrust blocks strategically placed to avoid blowouts, and electrical conduits are carefully capped to avoid moisture ingress.

Once the lines are installed, rigorous testing ensures everything functions as designed. Water lines are pressure tested to identify any leaks. Camera, vacuum, and mandrel test the storm and sanitary sewer lines per each jurisdiction’s codes. Only after all tests are passed can the trenches be backfilled.

Backfilling and Restoration: The Finishing Touches

Backfilling involves carefully replacing the excavated soil in a controlled manner. The material is compacted in “lifts” (layers) to prevent settling and ensure the long-term stability of the underground infrastructure. Any excess soil is hauled away or taken to other projects.

The final step involves stabilizing the surface to its original or planned condition. This may involve repaving roads, replanting grass, or modifying landscaping features. Carmichael Development is committed to leaving the site in pristine condition, minimizing the visual impact of any underground work.

Technology at the Forefront: Tools for Precision

Carmichael Development leverages the latest technologies to ensure the utmost precision and safety during underground utility installation. Some key tools include

• Leica and AGTEK: This software allows for precise positioning of utility lines according to the plan. Carmichael Development uses these to control equipment for fine grading and determine precise cut/fill depth at a specified location.
• Augmented Reality (AR): AR overlays can be used to visualize the planned location of utilities on the actual site. This helps construction crews navigate complex underground infrastructure with greater accuracy and efficacy.
• Drones: Carmichael Development uses drones to aid our visual interpretation of our sites and overall progress. On top of an ariel perspective, they also utilize “Propeller” software to capture survey grade topos allowing us to track and record earthworks progress with ease!

Sustainable Practices: Building for the Future

Sustainability is a core value at Carmichael Development. We prioritize trenchless technologies whenever possible, minimizing surface disruption and environmental impact. Recycled materials are considered for use as backfill material, reducing our reliance on virgin resources. Furthermore, we are constantly exploring innovative materials and techniques that minimize the environmental footprint of our underground utility installation processes. By combining meticulous planning, cutting-edge technology, and a commitment to sustainability, Carmichael Development ensures that the “underground marvels” we create not only support the present but also contribute to a greener future for the Southeast.

If you live in the Greater Atlanta Area and your business is in need of Sitework and Design Build services, reach out and learn how Carmichael Development can serve you and your needs. “Build From the Ground Up!”
